Parts Diagrams

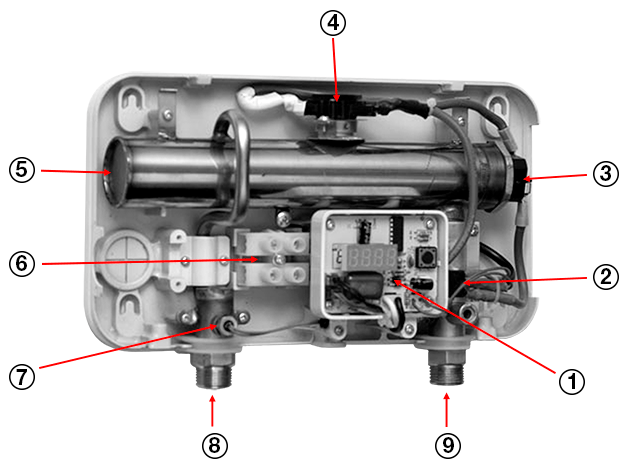

ECO POU 3.5 | ECO POU 6

The POU 3.5 has one (1) heating element and exchanger. The POU 3.5 uses (1) 3.5 kW @ 120 Volts.

The POU 6 has one (1) heating element and exchanger. The POU 6 uses (1) 5.5 kW @ 220 Volts.

Parts Description:
1. Electronic Board
2. Triac
3. Copper Heating Element
4. Automatic Thermostat
5. Stainless Steel Heat Exchanger
6. Terminal Block
7. Outlet Thermistor
8. Hot Water Outlet Connection
9. Cold Water Inlet Connection

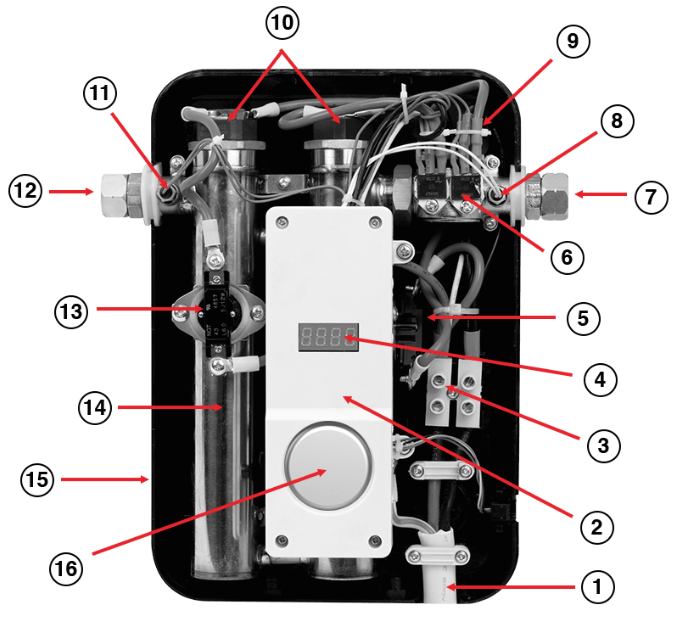

 ECO 8 | ECO 11

The ECO 8 has one (1) heating element and exchanger. The ECO 8 uses (1) 6 kW @ 208 Volts.

The ECO 11 has two (2) heating elements and exchangers. The ECO 11 uses (2) 5.5 kW @ 220 Volts.

Parts Description:
1. Supplied Electrical Cable
2. Electronic Board
3. Terminal Block
4. LED Temperature Display
5. Thermostat
6. Triacs
7. Cold Water Inlet Connection
8. Inlet Thermistor
9. Flow Sensor
10. Copper Heating Elements
11. Outlet Thermistor
12. Hot Water Outlet Connection
13. Thermostat
14. Stainless Steel Heat Exchanger
15. Back Casing
16. Temperature Control Setting Knob

                                      Ecosmart Electric Tankless Water Heater

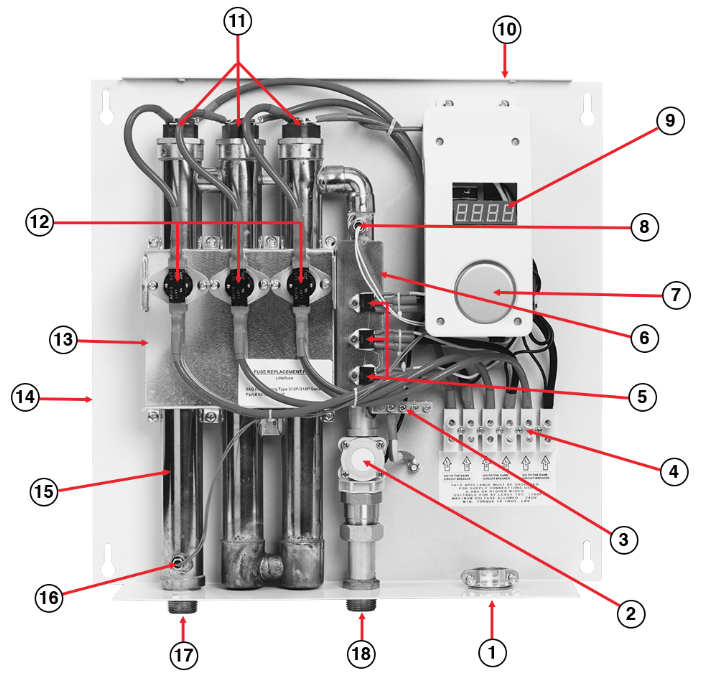

ECO 18 | ECO 24 | ECO 27 | ECO 36

The ECO 18 is a medium sized model and the unit has two (2) heating elements and exchangers. The ECO 18 uses (2) 9 kW @ 240 Volts.

The ECO 24 and ECO 27 are larger sized models and the units have three (3) heating elements and exchangers. The ECO 24 uses (3) 8 kW @ 240 Volts and the ECO 27 uses (3) 9 kW @ 240 Volts.

The ECO 36 is the largest sized model and the unit has four (4) heating elements and exchangers. The ECO 36 uses (4) 9 kW @ 240 Volts.

Parts Description:
1. Electrical Conduit Connection
2. Flow Sensor
3. Ground Connector
4. Terminal Block
5. Triacs
6. Triac Cooling Plate
7. Temperature Control Setting Knob
8. Inlet Temperature Sensor
9. Electronic Board & Protector
10. Fuse & Fuse Holder
11. Copper Heating Elements
12. Thermostats
13. Mounting Bracket
14. Back Casing
15. Copper Heat Exchanger
16. Outlet Temperature Sensor
17. Hot Water Outlet Connection
18. Cold Water Inlet Connection

                             Ecosmart Whole Home Electric Tankless Water Heater
